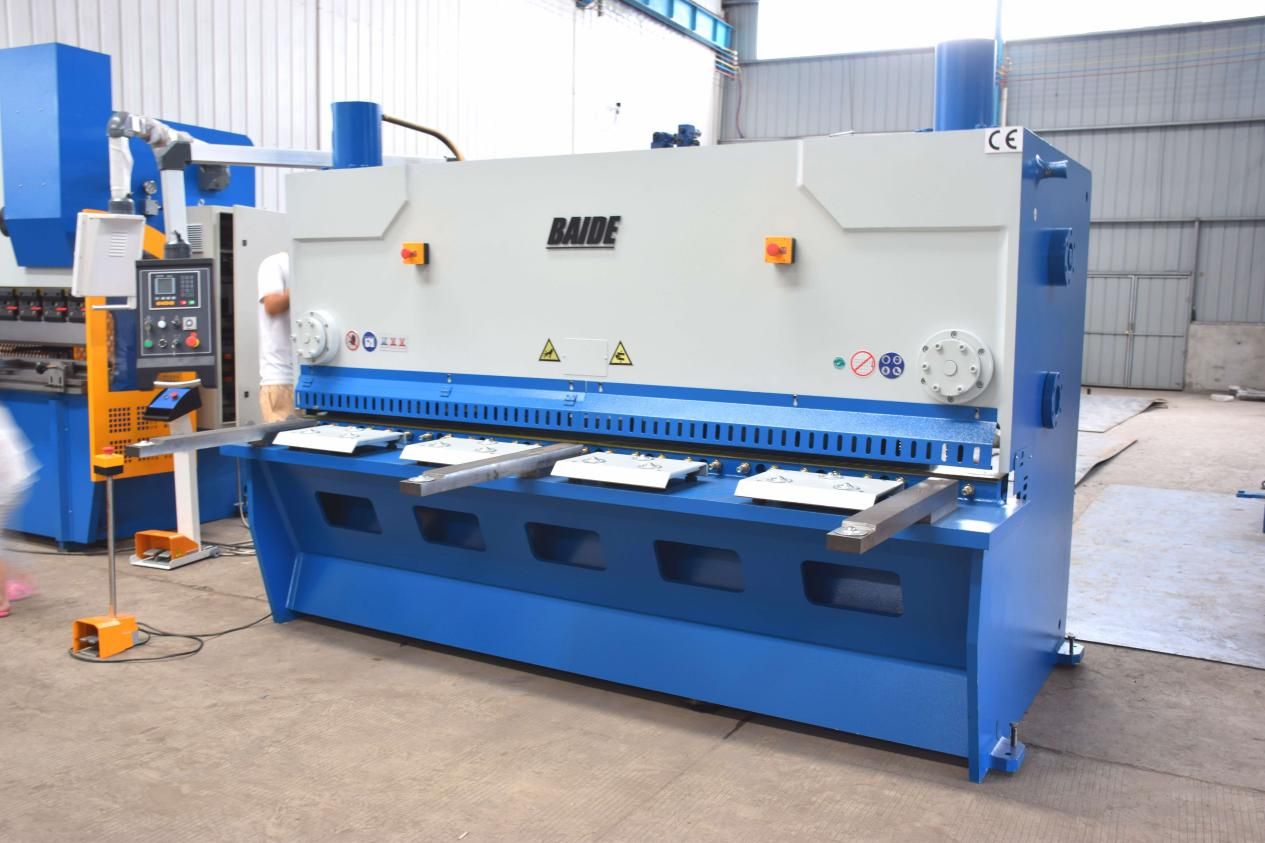

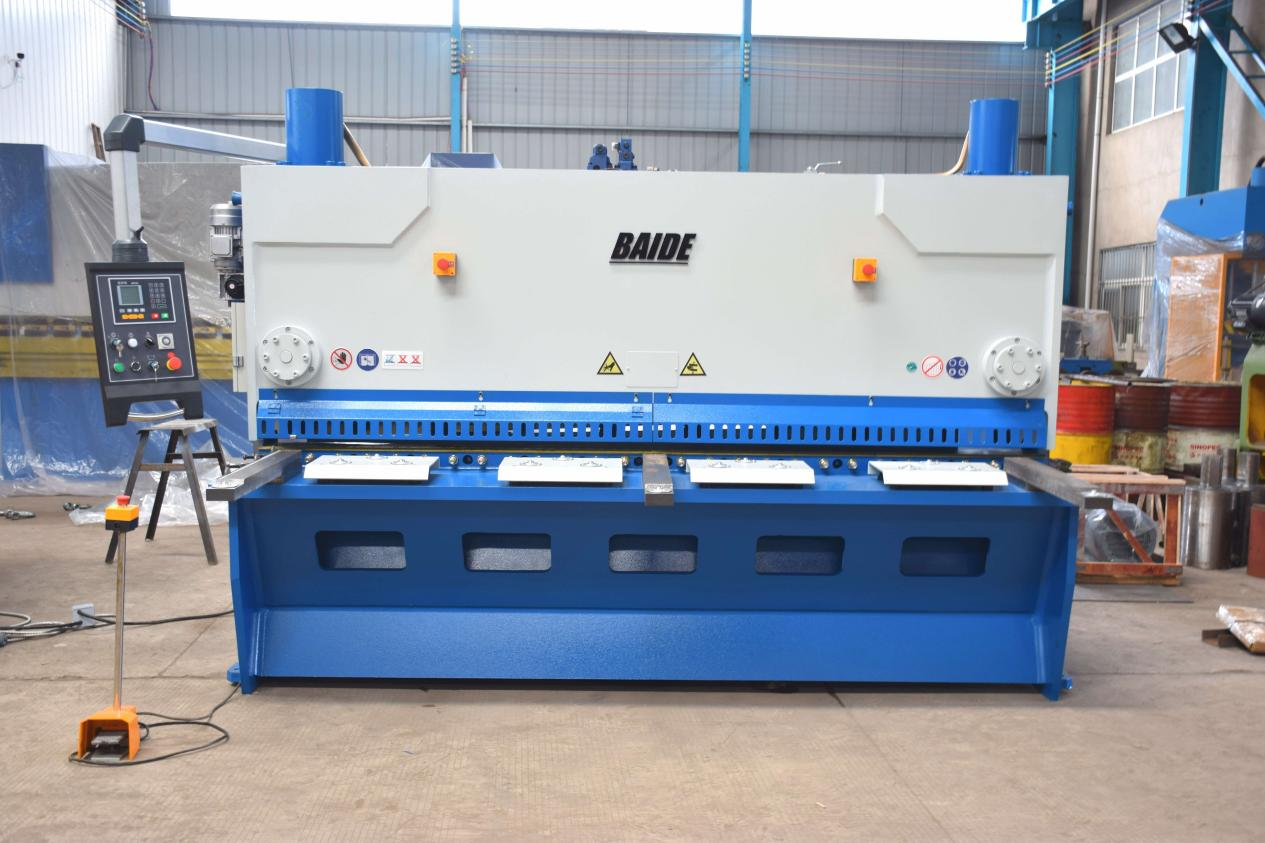

液压闸式剪板机/Hydraulic brake shears

产品介绍/Product presentation

液压闸式剪板机被广泛用于金属加工行业。由于该机器的高生产量和低噪音等特点，该机器正在被越来越广泛的应用于金属加工行业。而且，CNC操作系统确保了该机器的简单操作以及调节。闸式剪板机根据不同的操作方法可被分为很多种。其中液压闸式剪板机由于其高产量以及切割质量，应用最为广泛。

Hydraulic brake shears are widely used in metal processing industry.Due to the high production and low noise characteristics of the machine, the machine is being more and more widely used in the metal processing industry. Moreover, the CNC operating system ensures easy operation and adjustment of the machine.Brake shears can be divided into many types according to different operating methods. Hydraulic brake shears are widely used because of their high output and cutting quality.

主要特点/Main feature

1.液压闸式剪板机拥有高分辨率的显示屏。
2.液压闸式剪板机适用于各种金属板材切割。
3.通过调节刀片间隙，切割角度和长度，可以用于切割不同材料和厚度的金属。
4.刀片间隙的调节取决于所要切割的金属板材的厚度和材料。合适的间隙不仅能够有效的延长刀具的寿命，而且能够保证切割质量。通常，调节量为板材厚度的百分之十。
5.剪切角度可调最大程度保证板材的最小变形度。

1. Hydraulic brake shearing machine has a high-resolution display.
2. Hydraulic brake shears are suitable for cutting all kinds of metal plates.
3. By adjusting the blade clearance, cutting Angle and length, it can be used to cut metals of different materials and thicknesses.
4. The adjustment of the blade clearance depends on the thickness and material of the metal sheet to be cut. Suitable clearance can not only effectively extend the life of the tool, but also ensure the cutting quality. Usually, the adjustment amount is 10 percent of the thickness of the plate.
5. The shear Angle can be adjusted to ensure the minimum deformation of the plate.

1. 切割厚度（Cutting thickness）：4mm--40mm
2. 切割长度（Cutting length）：2000mm--6000mm
3. 切割角度（Cutting angle）：1°30′--4°
