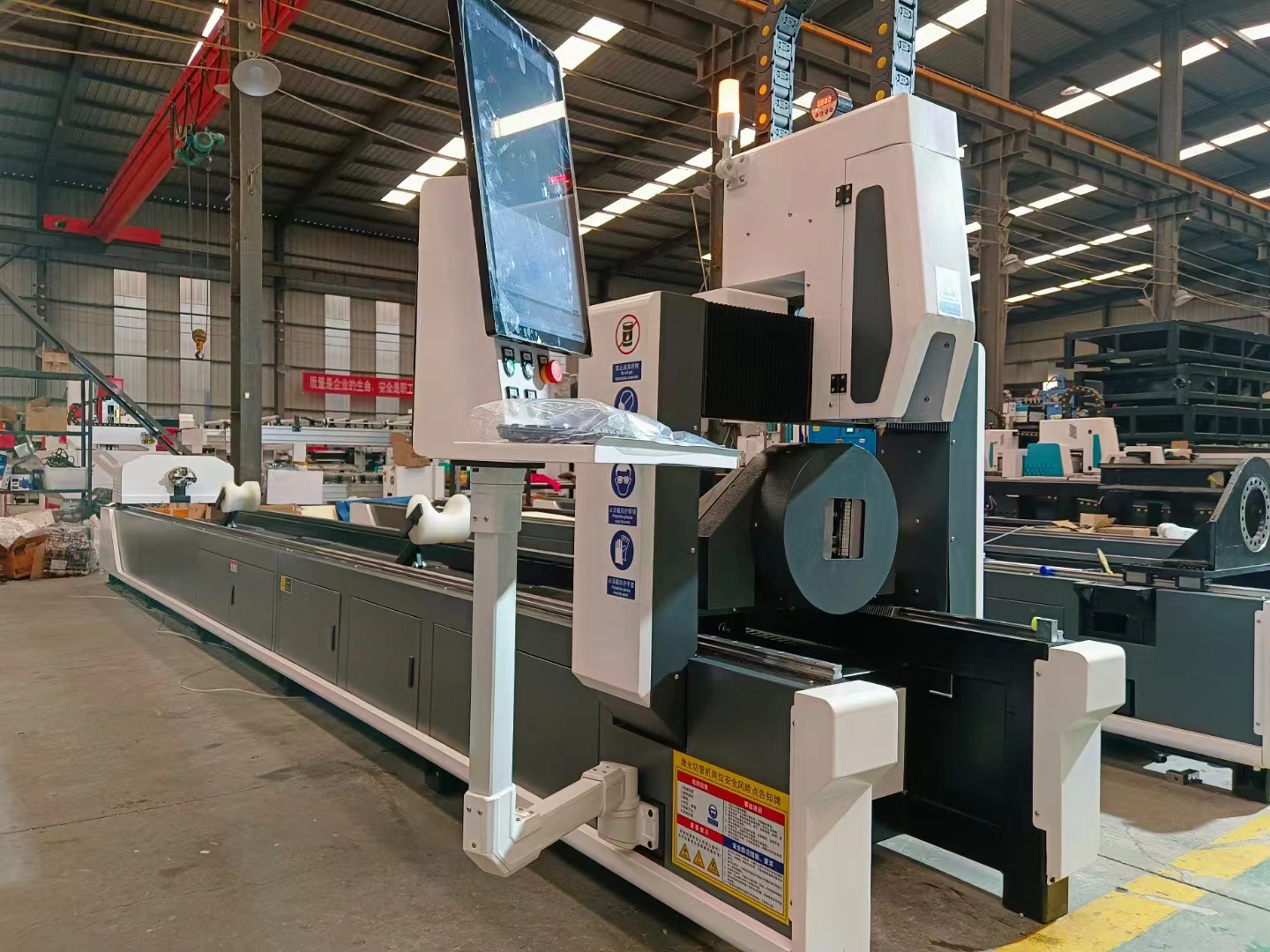

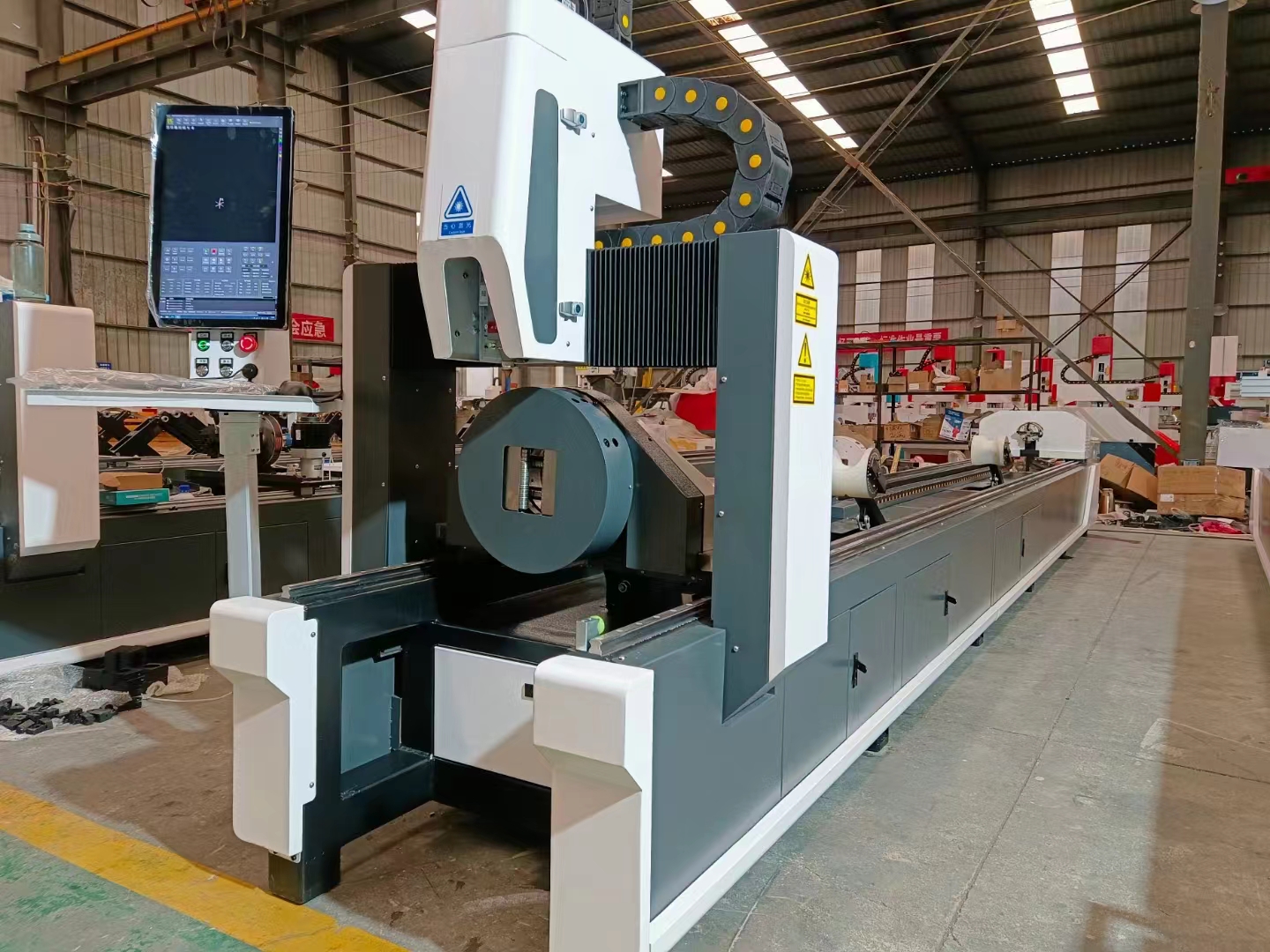

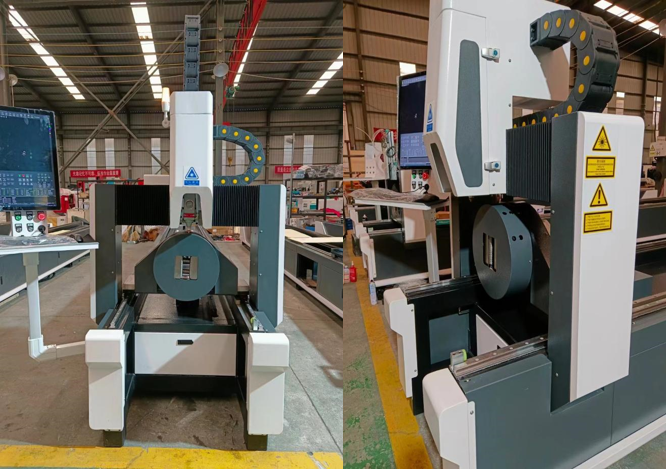

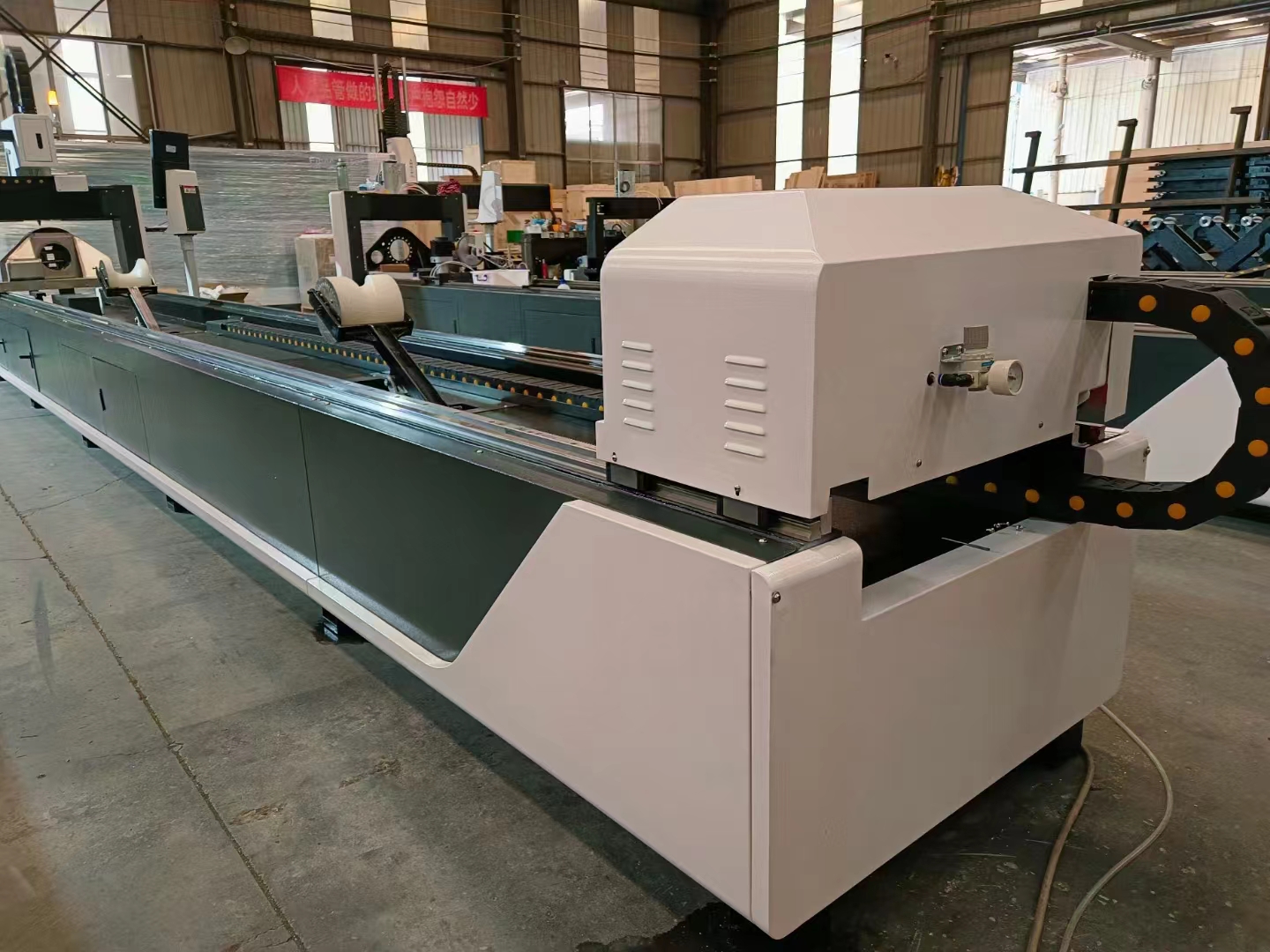

管材激光切割机/Tube laser cutting machine

产品介绍/Product introduction

管材激光切割机适用于圆管、方管、异型管及型材的一次切割成型，采用往复送料系统，不局限于管材长度，自动化程度高，直接导入三维图形，自动识别切割轨迹，进行精密高速加工。该机器配有全自动上料系统，可根据客户要求进行选配。激光加工成型的部件具有无毛刺、无黑口、相同产品尺寸具有极高一致性。可任意搭配不同功率的激光器，来适应不同壁厚的管材。

Pipe laser cutting machine is suitable for round pipe, square pipe, shaped pipe and profile cutting molding, using reciprocating feeding system, not limited to pipe length, high degree of automation, direct introduction of three-dimensional graphics, automatic identification of cutting trajectory, precision high-speed processing. The machine is equipped with a fully automatic feeding system, which can be selected according to customer requirements. The parts formed by laser processing have no burrs, no black marks, and the same product size has high consistency. Can be arbitrarily matched with different power lasers to adapt to different wall thickness of the pipe.

产品特点/Product characteristics

1、尾部上料，操作简单节省人力，安全性更高；

2、可以对管材进行开孔、切槽、切断和各种复杂图形的加工；

3、五轴四联动，一体化切割系统，高强度自动化，动态响应速度快；

4、采用全贯通数控旋转卡盘，管材通过口径大，外接圆直径145mm；

5、自主创新设计往复送料系统，对于超出有效行程长度的图形可以进行拼接式切割。

1, tail loading, simple operation save manpower, higher safety;

2, the pipe can be opened, grooving, cutting and a variety of complex graphics processing;

3, five-axis four-linkage, integrated cutting system, high strength automation, fast dynamic response speed;

4, the use of full through CNC rotary chuck, pipe through the diameter of large, the diameter of the outer circle 145mm;

5, independent innovation design reciprocating feeding system, for the graphics beyond the effective stroke length can be splicing cutting.

产品优势/Product advantage

1、热影响区小，不易变形；

2、速度快：是线切割速度的100倍以上；

3、使用成本很低，仅为同类CO2激光切割机的1/8-1/10；

4、性价比较高：价格只有同类型CO2激光切割机的1/3，及同等功效数控冲床的2/5；

5、精度高：适用于精密管材的切割，比CO2激光切割机高50%，达到0.03-0.05mm；

6、该机采用的光纤激光器是目前激光领域最稳定效的产品，能保证激光设备高效稳定的持续生产。

1, the heat affected zone is small, not easy to deformation;

2, fast speed: more than 100 times the wire cutting speed;

3, the use cost is very low, only 1/8-1/10 of similar CO2 laser cutting machine;

4, high cost performance: the price is only 1/3 of the same type of CO2 laser cutting machine, and 2/5 of the same effect CNC punching machine;

5, high precision: suitable for cutting precision pipe, 50% higher than CO2 laser cutting machine, reaching 0.03-0.05mm;

6. The fiber laser used by the machine is the most stable and effective product in the laser field at present, which can ensure the efficient and stable continuous production of laser equipment.
